Name: DKE 2.7 inch Black/White/Red e Paper Display
Brand: DKE Holding CO., LTD.
SKU: 00180
Availability: InStock
Rating: 5 (1 reviews)

Home > Tri-Color > DKE 2.7 inch Black/White/Red e Paper Display

Description Specification

Description

ABOUT US
Zhejiang DKE Co.,LTD.,founded in 2005 in Liaoning Dalian,China,is a world-renowned new electronic paper display technology manufacturing service provider.After more than 10 years of sedimentation and development,we start from the production of LCD module to the development and manufacture of E-paper,and then to today's color E-paper research breakthrough development,DKE through the industrial transformation,strategic changing,main business adjustment,and several leapfrog growth stages eventually became an integrated enterprise with the collection of various types of E-paper display modules’design,development,production,and sales.

INTRODUCTION

DEPG0270BSS800F40 is an Active Matrix Electrophoretic Display (AMEPD), withinterface and a reference system design. The display is capable to display images at 1-bit white, black full display capabilities. The 2.7 inch active area contains 264x176 pixels. The moduleisaTFT-array driving electrophoresis display, with integrated circuits including gate driver, sourcedriver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Modulecanbeused in portable electronic devices, such as Electronic Shelf Label (ESL) System.

FEATURE

◆296×128 pixels display

◆High contrast High reflectance

◆Ultra wide viewing angle Ultra low power consumption

◆Pure reflective mode

◆Bi-stable display

◆Commercial temperature range

◆Landscape portrait modes

◆Hard-coat antiglare display surface

◆Ultra Low current deep sleep mode

◆On chip display RAM

◆Waveform can stored in On-chip OTP or written by MCU

◆Serial peripheral interface available

◆On-chip oscillator

◆On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage

◆I²C signal master interface to read external temperature sensor

◆Built-in temperature sensor

APPLICATION

◆Internet of Things

◆Electronic shelf labels

◆Identification & Access

◆1D/2D barcode

◆Smart Tags

◆Reusable Transit Item

Specification

PARAMETERS

Part Number	DEPG0290BSS800F40
Type	Dot Matrix
Size	2.9"
Resolution	264(H)×176(V)
Colour	Black,White
Operation Temp	0℃to +50℃
DPI	112
Active Area	30.7×60.08

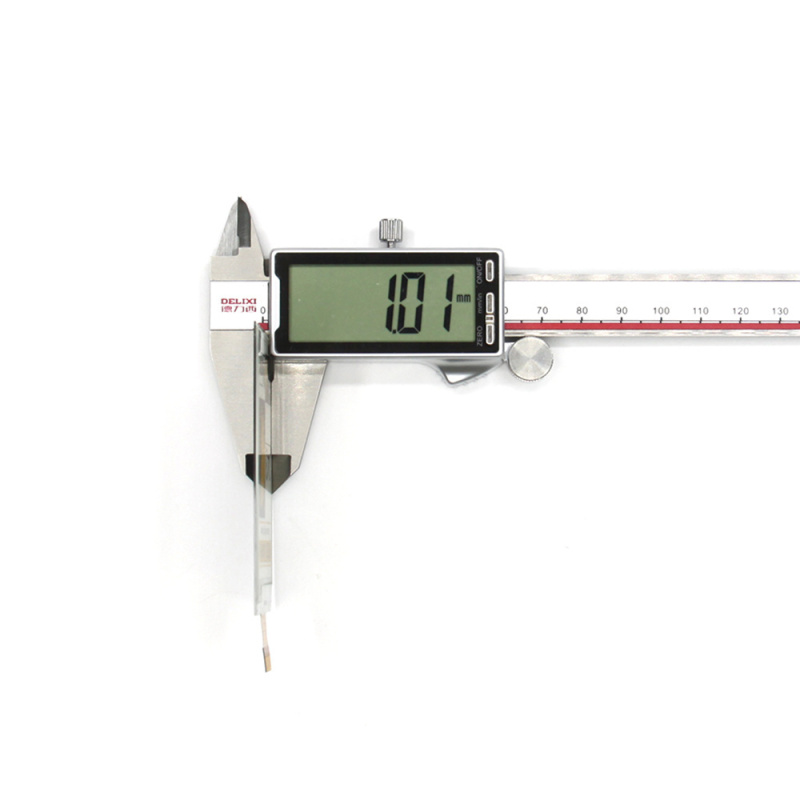

Outline Dimension	36.3(H)×71.82 (V) ×1.1(D)
Typical operating current	3.0V
Typical peak current	2.2~3.7v
Weight	6.7±0.3
Pixel Pitch(mm)	0.227×0.226
Grey level	2Grey Level
