INTRODUCTION

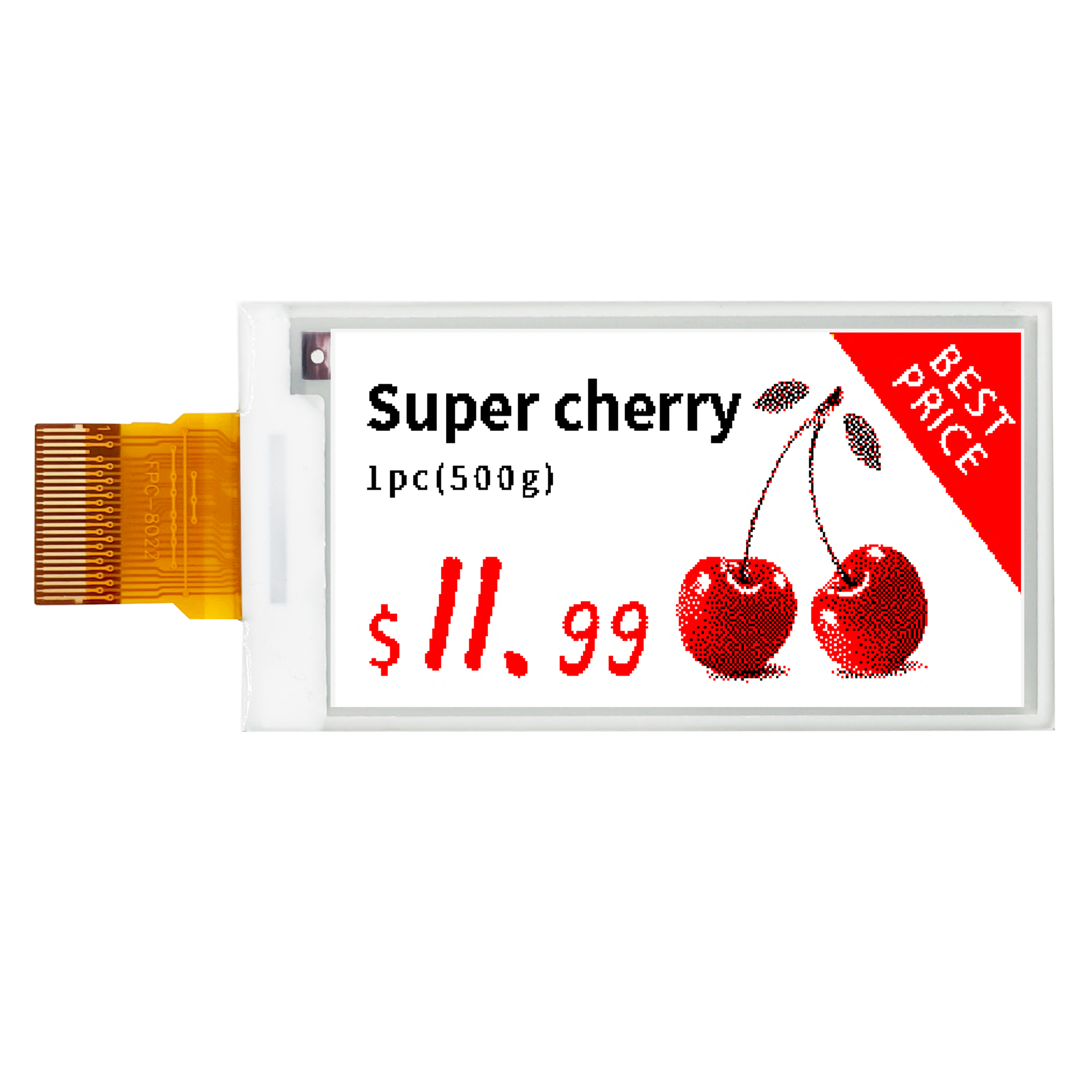

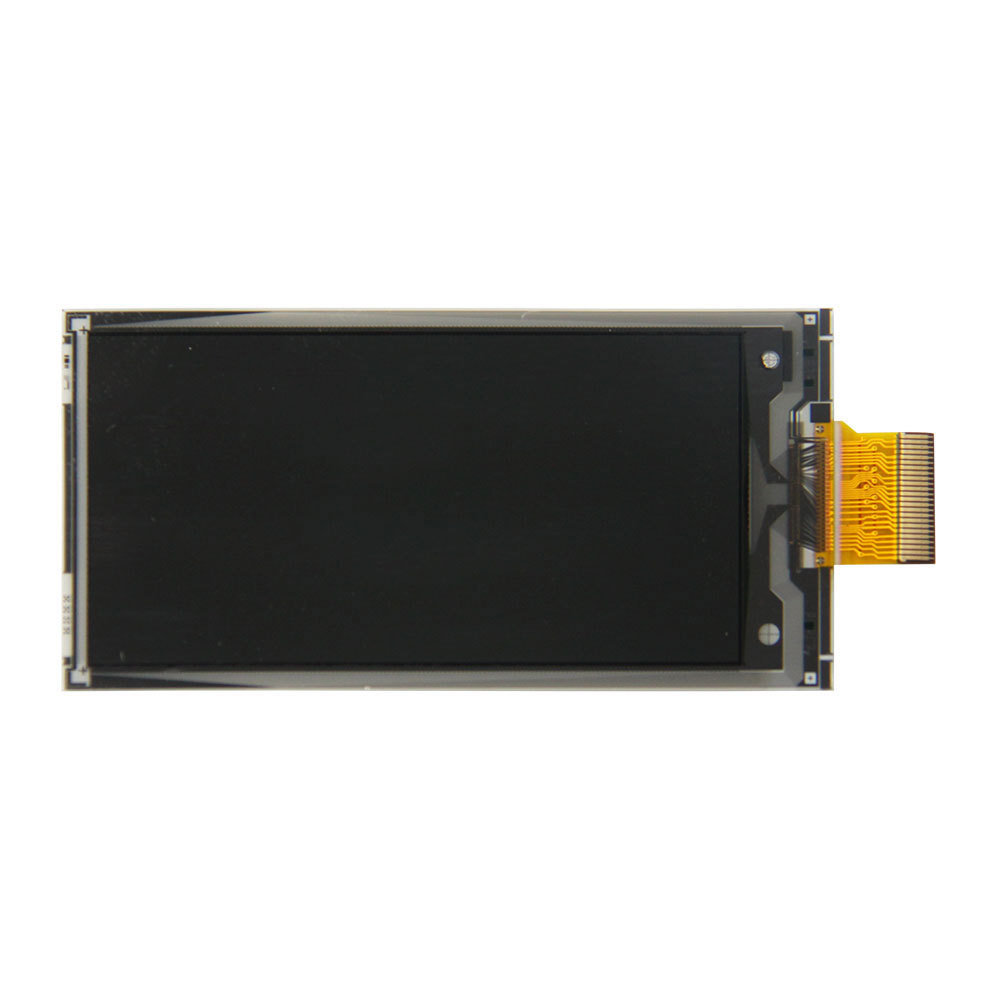

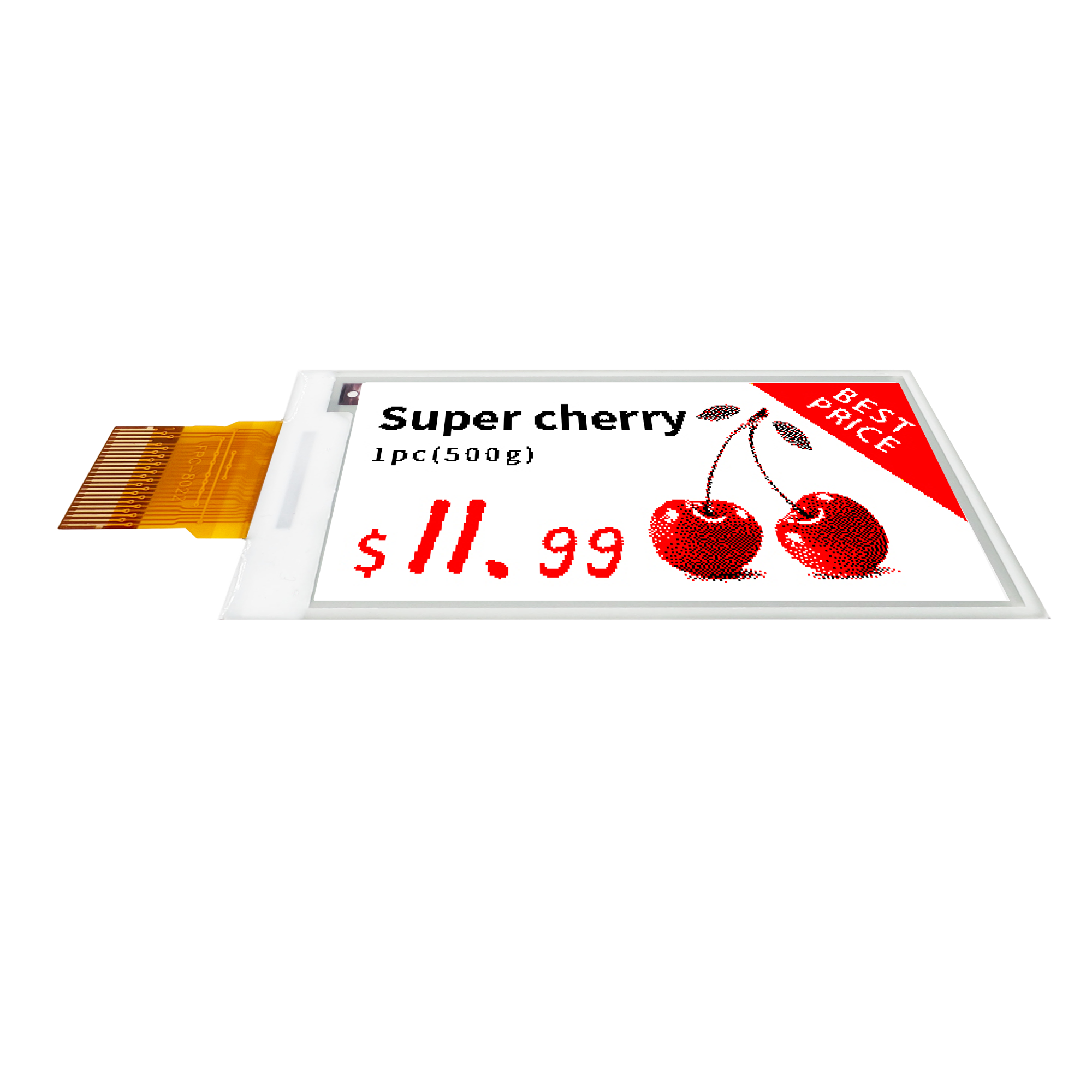

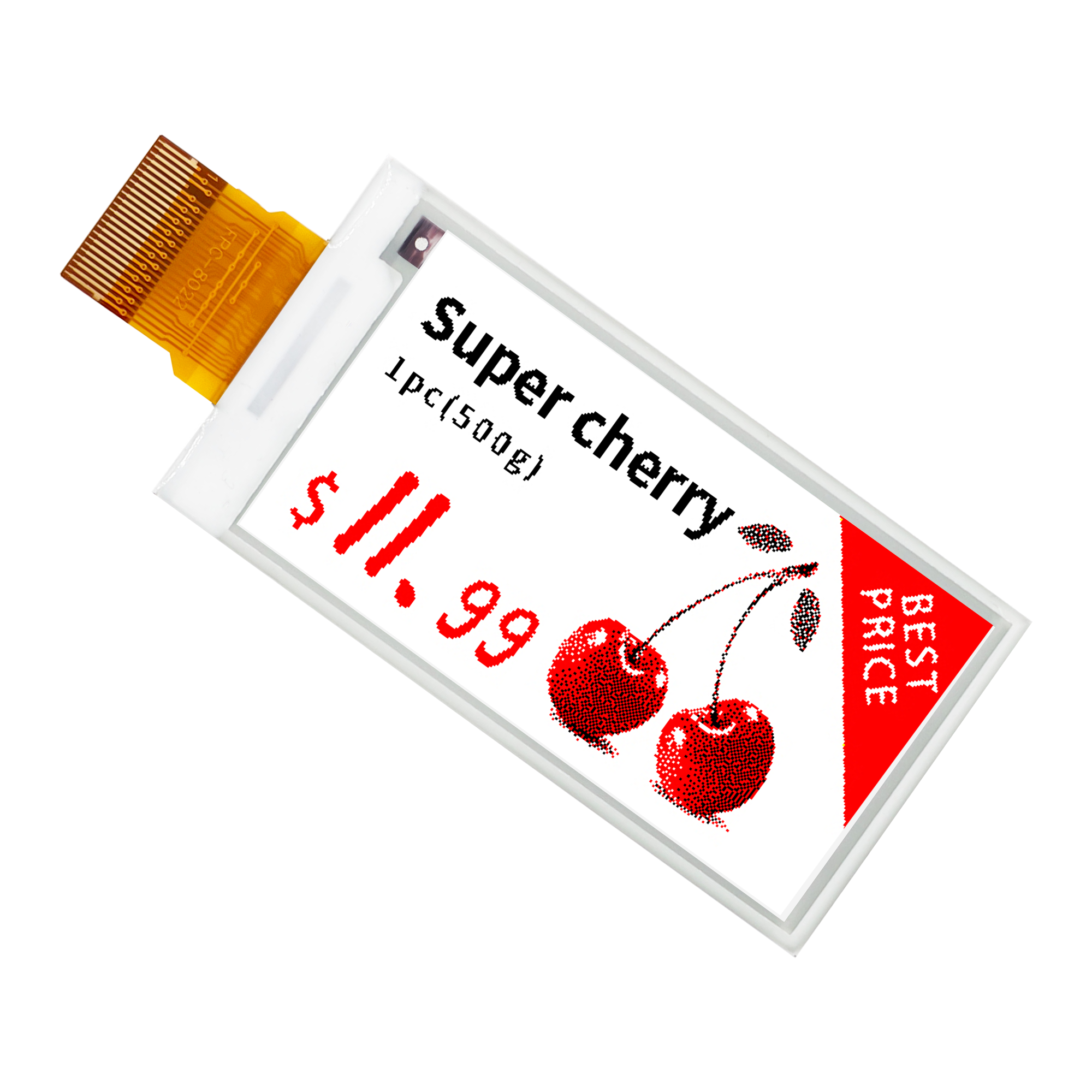

DEPG0266RWS800F34 is an Active Matrix Electrophoretic Display (AMEPD), withinterface and a reference system design. The display is capable to display images at 1-bit white, black and red full display capabilities. The 2.66 inch active area contains 296×152 pixels. Themodule is a TFT-array driving electrophoresis display, with integrated circuits including gatedriver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Modulecan be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.
FEATURE
◆296×152pixels display
◆High contrast High reflectance
◆Ultra wide viewing angle Ultra low power consumption
◆Pure reflective mode
◆Bi-stable display
◆Commercial temperature range
◆Landscape portrait modes
◆Hard-coat antiglare display surface
◆Ultra Low current deep sleep mode
◆On chip display RAM
◆Waveform can stored in On-chip OTP or written by MCU
◆Serial peripheral interface available
◆On-chip oscillator
◆On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
◆I 2 C signal master interface to read external temperature sensor
◆Built-in temperature sensor
APPLICATION
◆Internet of Things
◆Electronic shelf labels
◆Identification & Access
◆1D/2D barcode
◆Smart Tags
◆Reusable Transit Item
