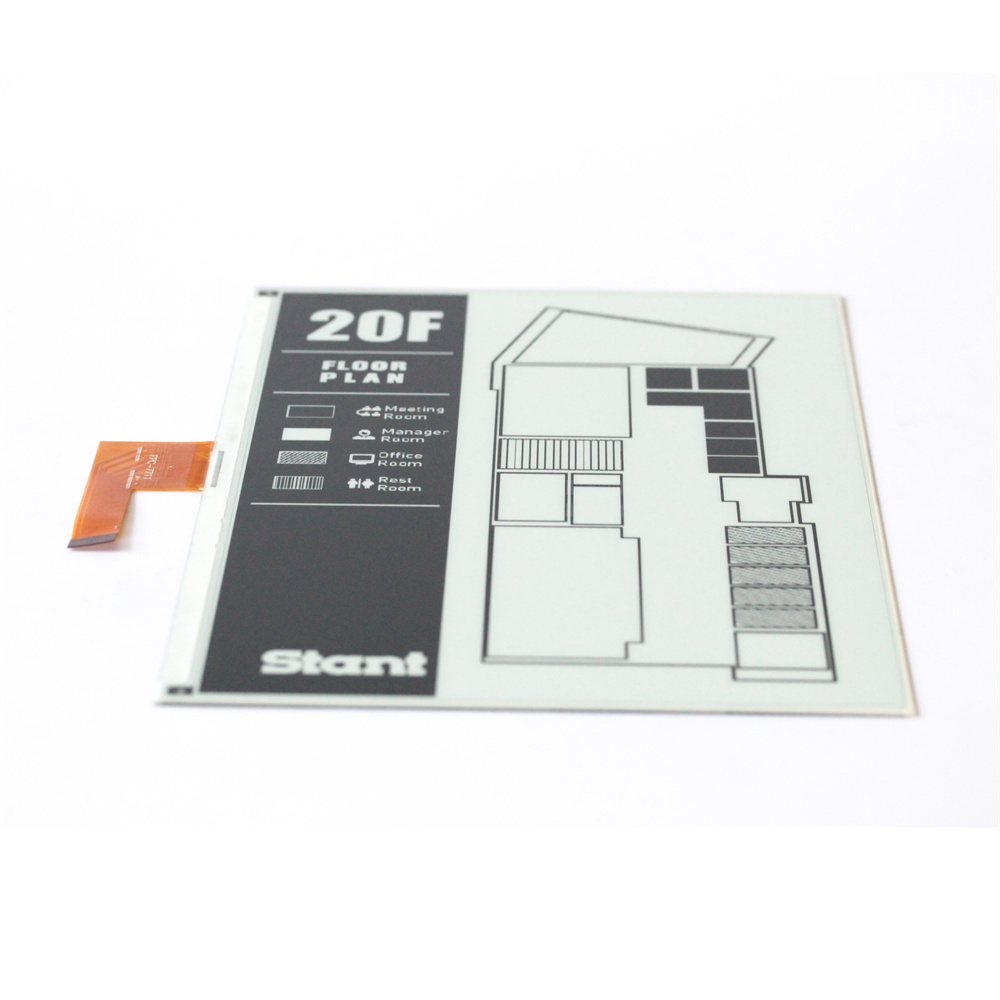

Name: DKE 11.6 inch Black White Epaper Display
Brand: DKE Holding CO., LTD.
SKU: 00215
Availability: InStock
Rating: 5 (1 reviews)

Home > Black&White > DKE 11.6 inch Black White Epaper Display

Description Specification

Description

ABOUT US

Founded in 2005, DKE has been committed to the e-paper market for more than twenty years. It has now become a professional manufacturer and service provider of e-paper display technology integrating R&D, design, production and sales of a wide range of e-paper display modules. At present,, DKE is also one of the core companies in the global e-paper industry, with four production bases in Jiaxing, Zhejiang Province, Dalian City, Liaoning Province and Vietnam, and a total of more than a thousand employees.

INTRODUCTION

DEPG1160BN is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The 11.6inch active area contains 960×640 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

FEATURE

◆960×640 pixels display

◆High contrast High reflectance

◆Ultra wide viewing angle Ultra low power consumption

◆Pure reflective mode

◆Bi-stable display

◆Commercial temperature range

◆Landscape portrait modes

◆Hard-coat antiglare display surface

◆Ultra Low current deep sleep mode

◆On chip display RAM

◆Waveform can stored in On-chip OTP or written by MCU

◆Serial peripheral interface available

◆On-chip oscillator

◆On-chip booster and regulator control for generating VCOM, Gate and Source driving

voltage

◆I2C signal master interface to read external temperature sensor

◆Built-in temperature sensor

APPLICATION

◆Internet of Things

◆Electronic shelf labels

◆Identification & Access

◆1D/2D barcode

◆Smart Tags

◆Reusable Transit Item

Specification

PARAMETERS

Part Number	DEPG116BN
Type	EPaper
Size	11.6"
Resolution	960(H)×640(V)
Colour	Black,White,Red
Operation Temp	0℃to +30℃
DPI	100
Active Area	244.51×163.01

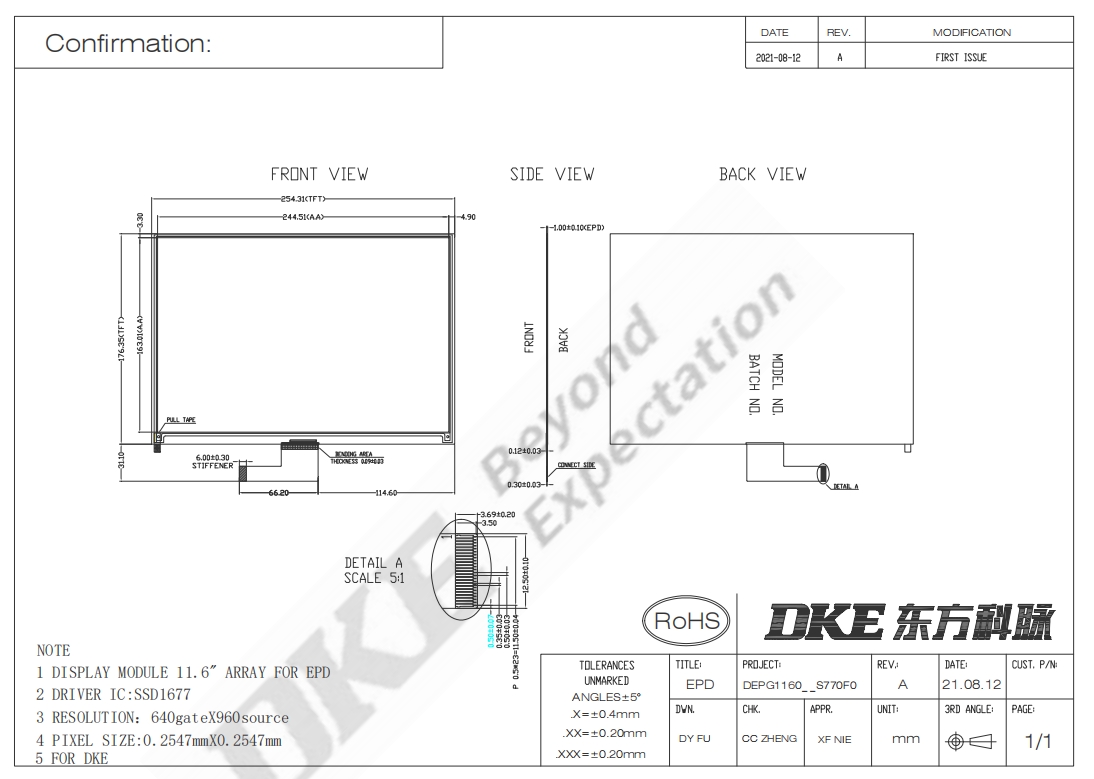

Outline Dimension	254.31(H)×176.35 (V) ×1.0(D)
Typical operating current	3.0V
Typical peak current	2.3~3.6v
Weight	76.48±0.5
Pixel Pitch(mm)	0.2245×0.2245
Grey level	2Grey Level
