DKE was founded in 2005 and has been committed to the e-paper market for more than 20 years. Now it has become a professional manufacturer and service provider of e-paper display technology integrating R&D, design, production and sales of various e-paper display modules. DKE is also one of the core companies in the global e-paper industry, with 4 production bases in Jiaxing, Zhejiang, Dalian,
Liaoning and Vietnam.
Application
Office: Meeting Room Sign, ID card,Conference nameplate.
| Part Number |
DEPG1330RTE133F5HP
|
| Size | 13.3" |
| Resolution |
1200(H)×1600(V)
|
| Colour | Black,White,Yellow,Red,Green,Blue |
| Operation Temp | 0℃~50℃ |
| DPI |
150
|
| Active Area(mm) |
202.8(H)×270.4(V)
|
| Outline Dimension(mm) |
208.8(H)×284.7(V)×1.0(D)
|
| Typical operating current | 3.0V |
| Weight(g) |
111±1
|
| Pixel Pitch(mm) | 0.169×0.169 |
PARAMETERS
| Part Number |
DEPG1330RTE133F5HP
|
| Size | 13.3" |
| Resolution |
1200 (H)x1600(V)
|
| Colour | Full-Color |
| Operation Temp | 0℃to +50℃ |
| DPI |
150
|
| Active Area |
202.8(H)x 270.4(V)
|
| Outline Dimension |
208.8(H)x284.7(V)
|
| Typical operating current | 3.0V |
| Pixel Pitch(mm) |
0.169x0.169
|

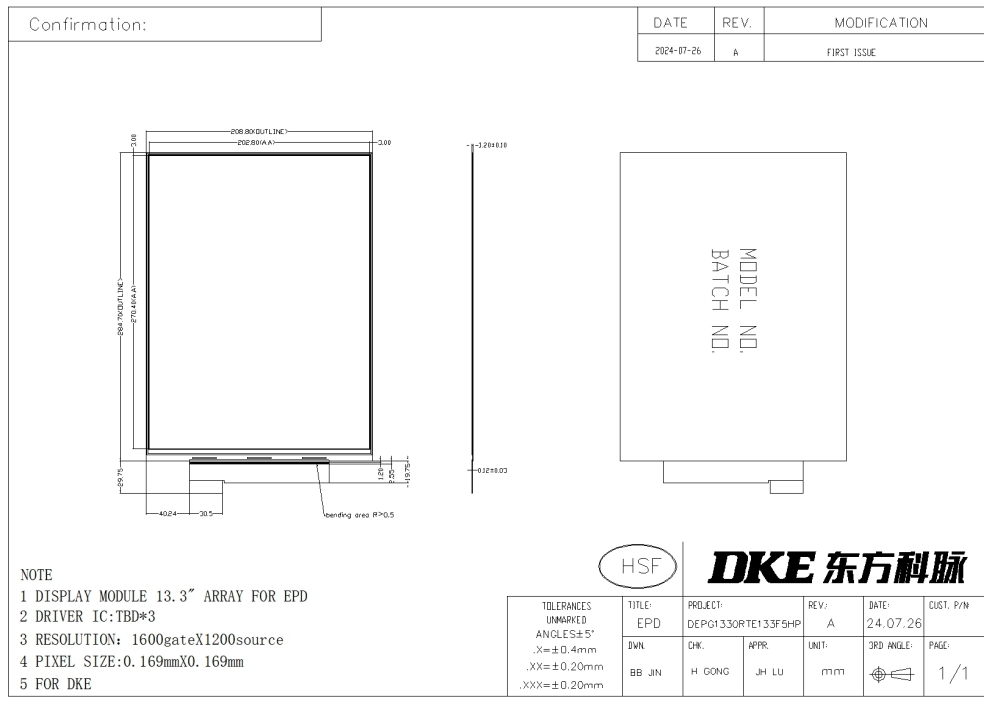

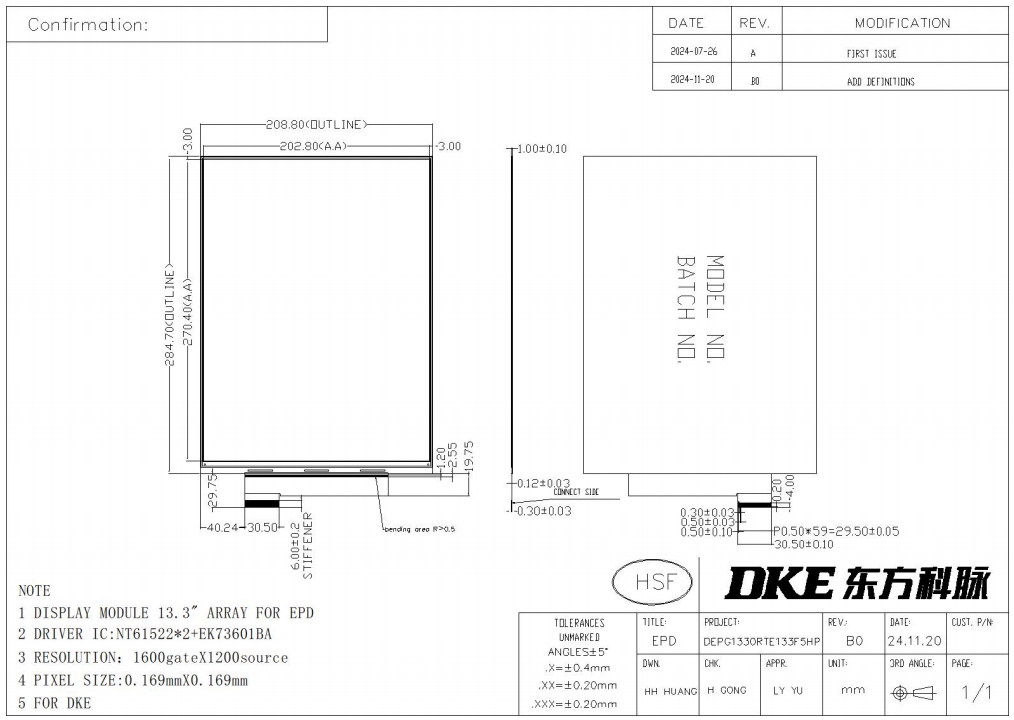

DRAWING
