INTRODUCTION
DEPG0154BN is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white,black full display capabilities.The 1.54inch active area contains 152×152 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.
FEATURE
◆152×152 pixels display
◆High contrast High reflectance
◆Ultra wide viewing angle Ultra low power consumption
◆Pure reflective mode
◆Bi-stable display
◆Commercial temperature range
◆Landscape portrait modes
◆Hard-coat antiglare display surface
◆Ultra Low current deep sleep mode
◆On chip display RAM
◆Waveform can stored in On-chip OTP or written by MCU
◆Serial peripheral interface available
◆On-chip oscillator
◆On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
◆I²C signal master interface to read external temperature sensor
◆Built-in temperature sensor
APPLICATION
◆Internet of Things
◆Electronic shelf labels
◆Identification & Access
◆1D/2D barcode
◆Smart Tags
◆Reusable Transit Item
PARAMETERS
Part Number | DEPG0154BN |
Type | Dot Matrix |
Size | 1.54" |
Resolution | 152(H)×152(V) |
Colour | Black,White |
Operation Temp | 0℃to +50℃ |
DPI | 140 |
Active Area | 27.512×27.512 |
Outline Dimension | 31.8(H)×37.32 (V) ×1.0(D) |
Typical operating current | 3.0V |
Typical peak current | 2.3~3.6v |
Weight |
2.18±0.5 |
Pixel Pitch(mm) |
0.181×0.181 |
Grey level | 2Grey Level |

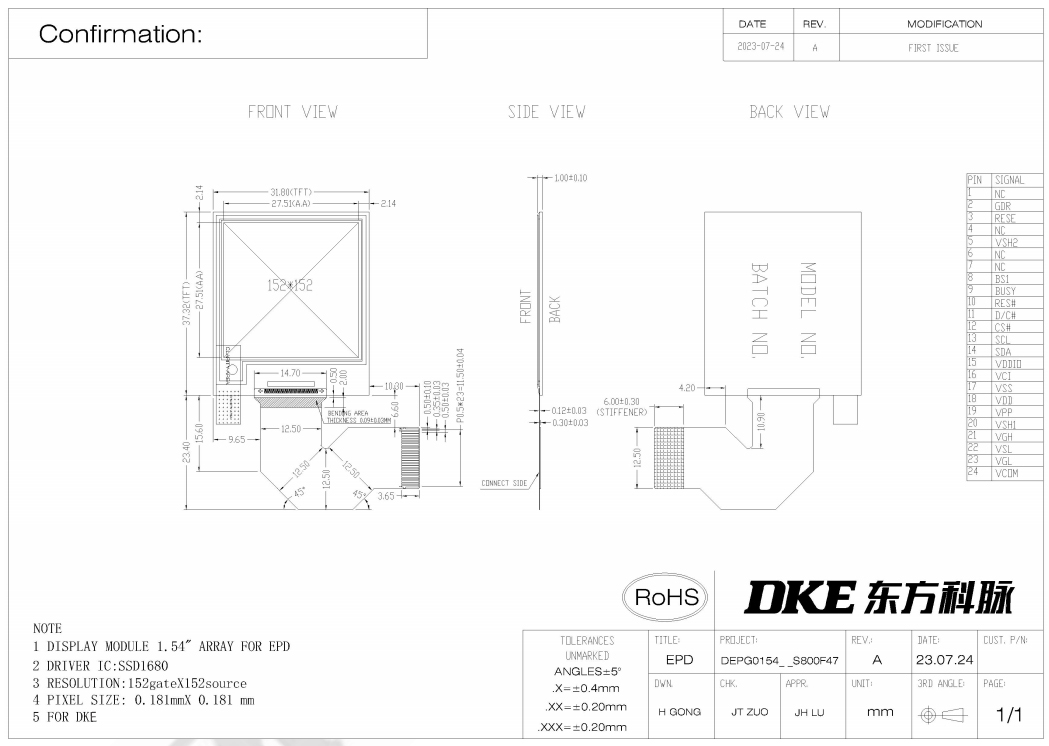

DRAWING
