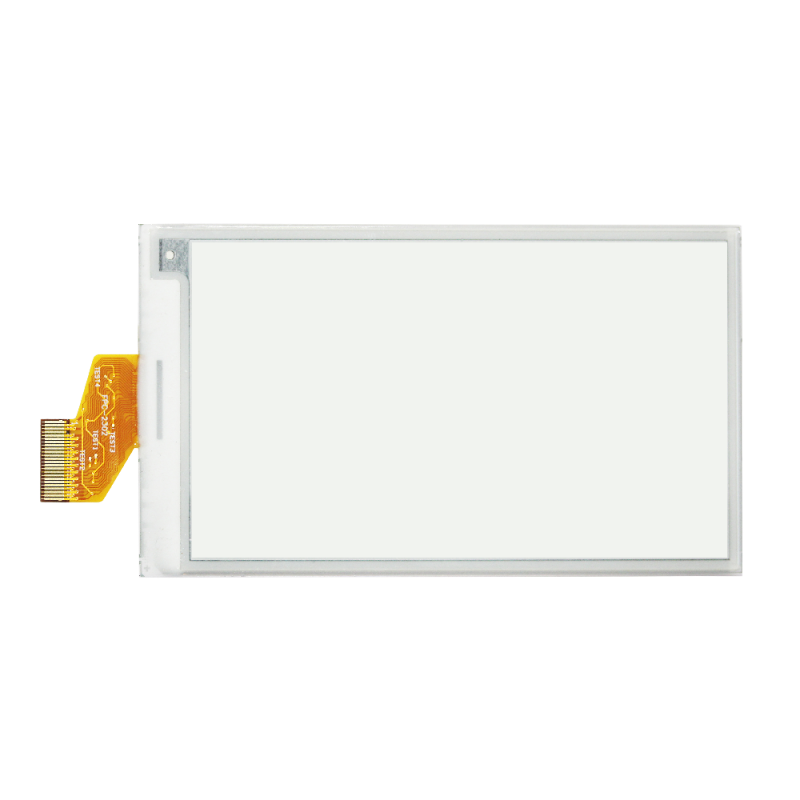

DKE 3.7 inch Black/White/Red/Yellow ePaper Display

Item No.: 00188
Resolution 240(H)×416(V),
Active Area 47.04×81.54,
Outline Dimension 53(H)×92.99 (V) ×1.0(D),
IC is UC8253,SPI interface.The epaper screen supports 2 grayscale, High contrast, can be seen under sunlight and continue display without power.
  • Color:
    Black/White/Red/Yellow
  • Size:
    3.7 inch
Description Specification
Description
ABOUT US
Zhejiang DKE Co.,LTD.,founded in 2005 in Liaoning Dalian,China,is a world-renowned new electronic paper display technology manufacturing service provider.After more than 10 years of sedimentation and development,we start from the production of LCD module to the development and manufacture of E-paper,and then to today's color E-paper research breakthrough development,DKE through the industrial transformation,strategic changing,main business adjustment,and several leapfrog growth stages eventually became an integrated enterprise with the collection of various types of E-paper display modules’design,development,production,and sales.

INTRODUCTION

DEPG0370RWU253F9 is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit
white ,black and red full display capabilities.The 3.7inch active area contains 416×240 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

FEATURE

416×240 pixels display
High contrast High reflectance
Ultra wide viewing angle Ultra low power consumption
Pure reflective mode
Bi-stable display
Commercial temperature range
Landscape portrait modes
Hard-coat antiglare display surface
Ultra Low current deep sleep mode
On chip display RAM
Waveform can stored in On-chip OTP or written by MCU
Serial peripheral interface available
On-chip oscillator
On-chip booster and regulator control for generating VCOM, Gate and Source driving
voltage
I2C signal master interface to read external temperature sensor
Built-in temperature sensor



APPLICATION



◆Internet of Things

◆Electronic shelf labels

◆Identification & Access

◆1D/2D barcode

◆Smart Tags

◆Reusable Transit Item

Specification

PARAMETERS



Part Number
DEPG0370RWU253F9
Type E-Paper
Size 3.7"
Resolution
240(H)×416(V)
Colour Black,White,Red
Operation Temp 0℃to +40℃
DPI
130
Active Area
47.04×81.54
Outline Dimension
53(H)×92.99 (V) ×1.0(D)
Typical operating current 3.0V
Typical peak current 2.3~3.6v
Weight
8.88±0.5
Pixel Pitch(mm)
0.196×0.196
Grey level 2Grey Level







DRAWING
