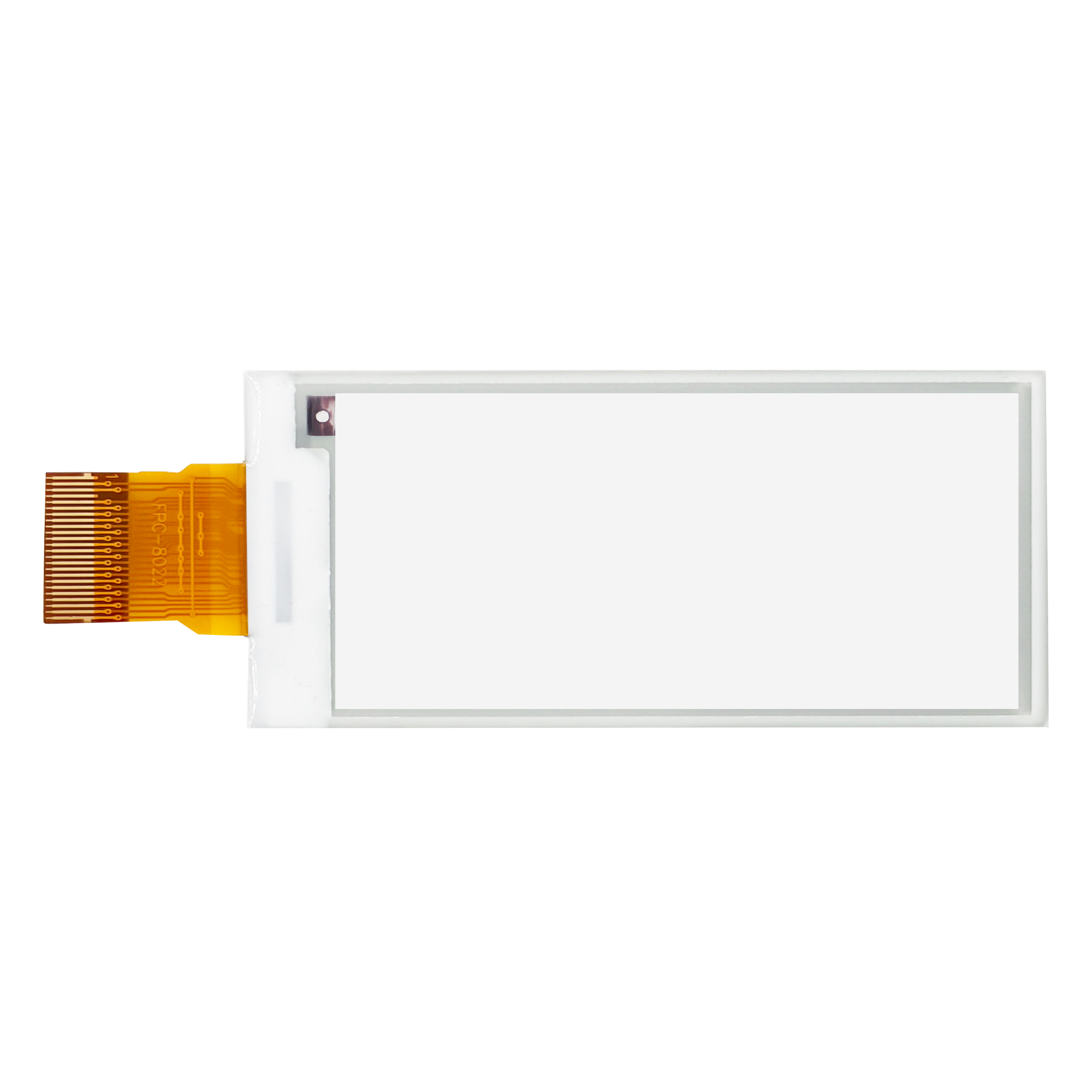

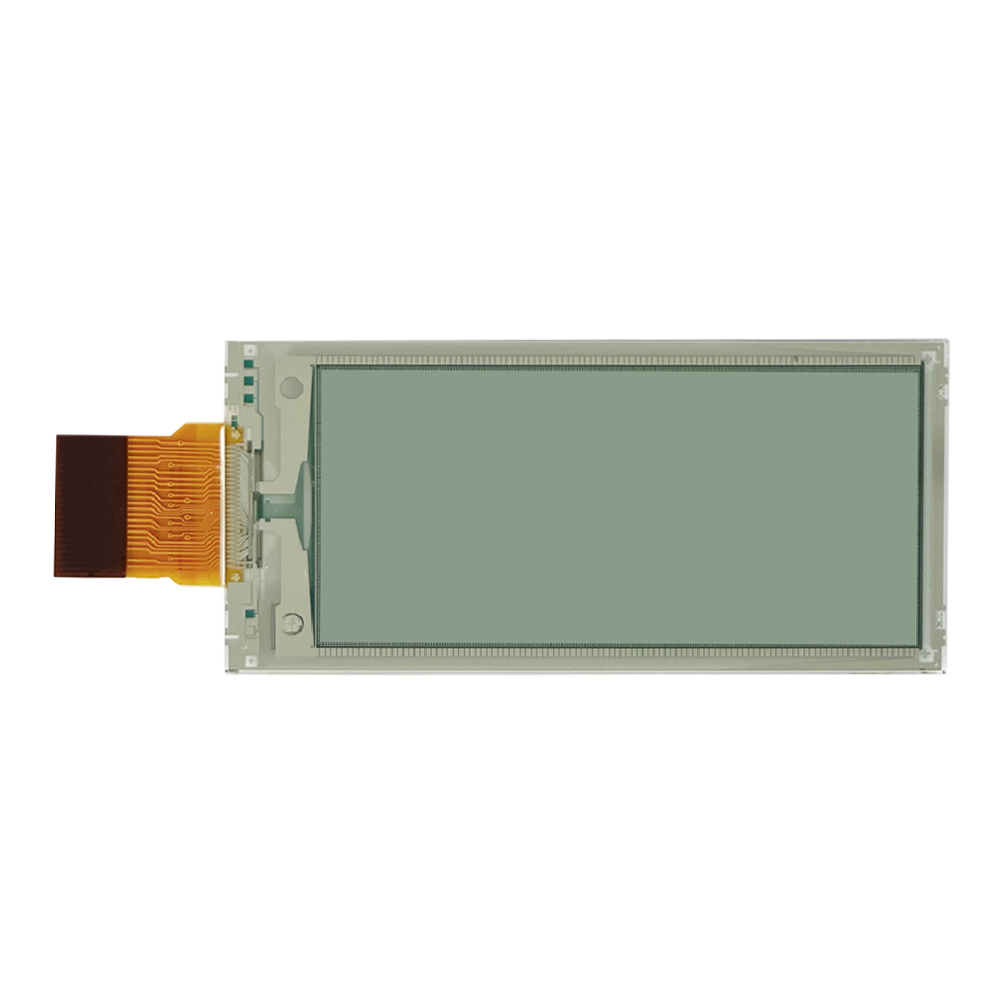

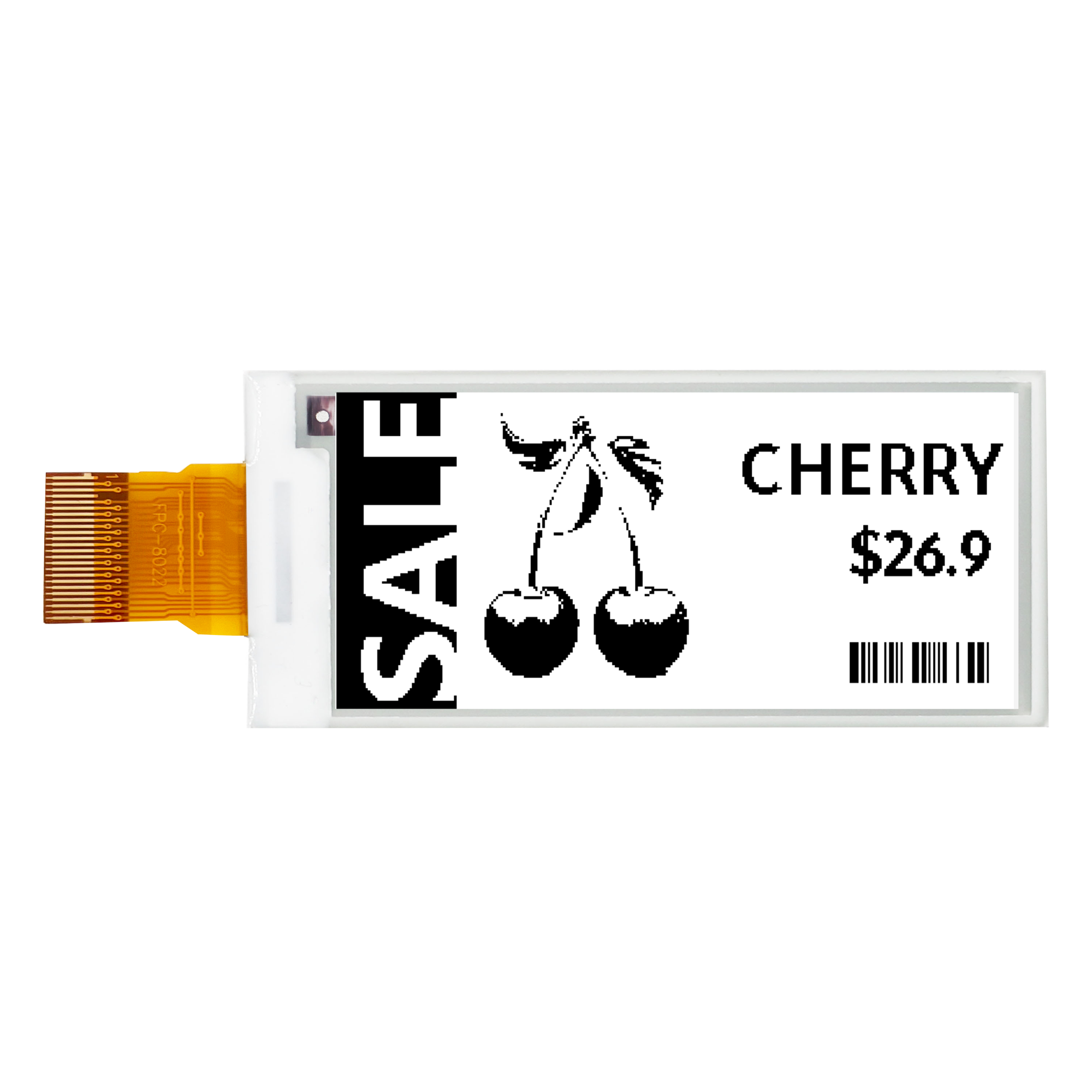

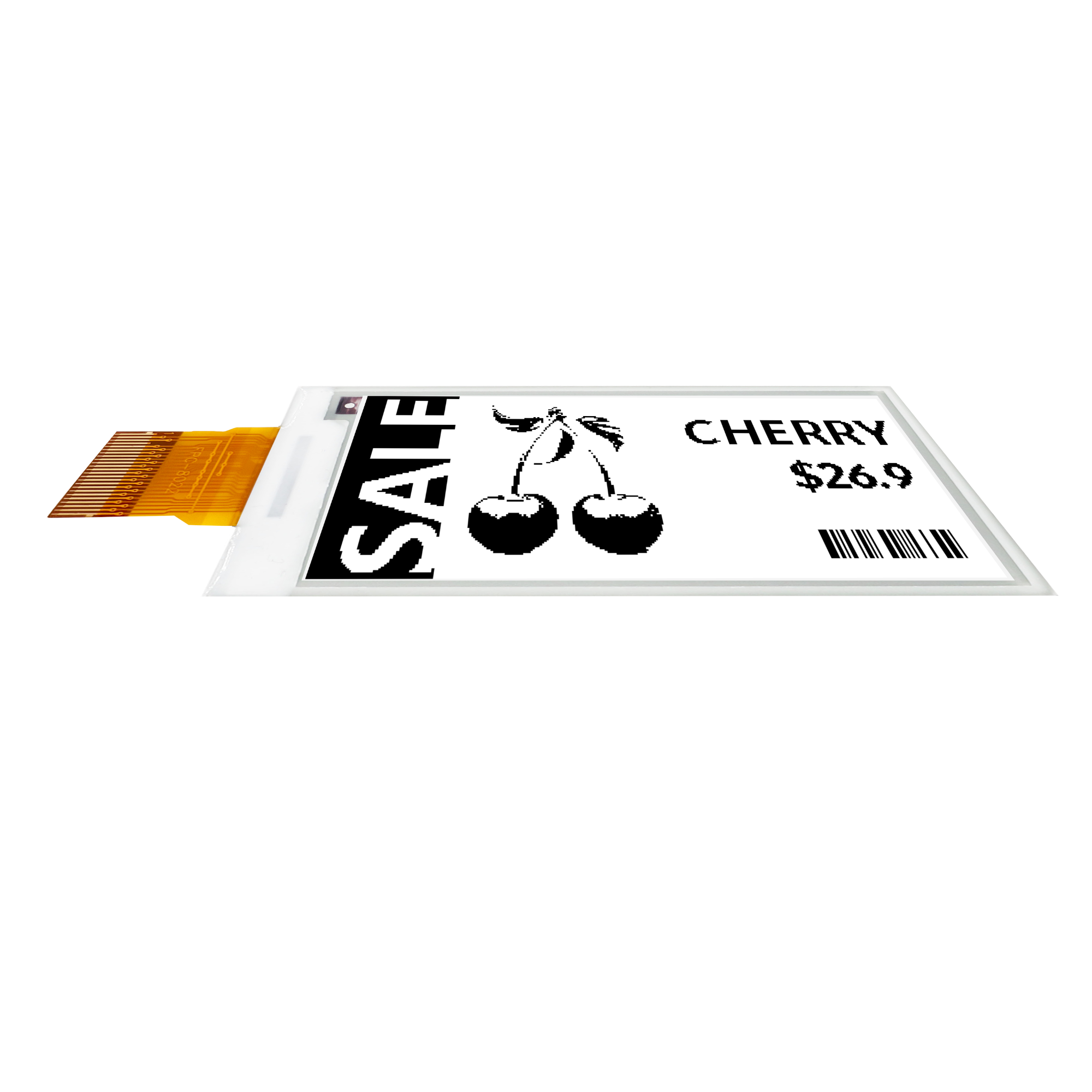

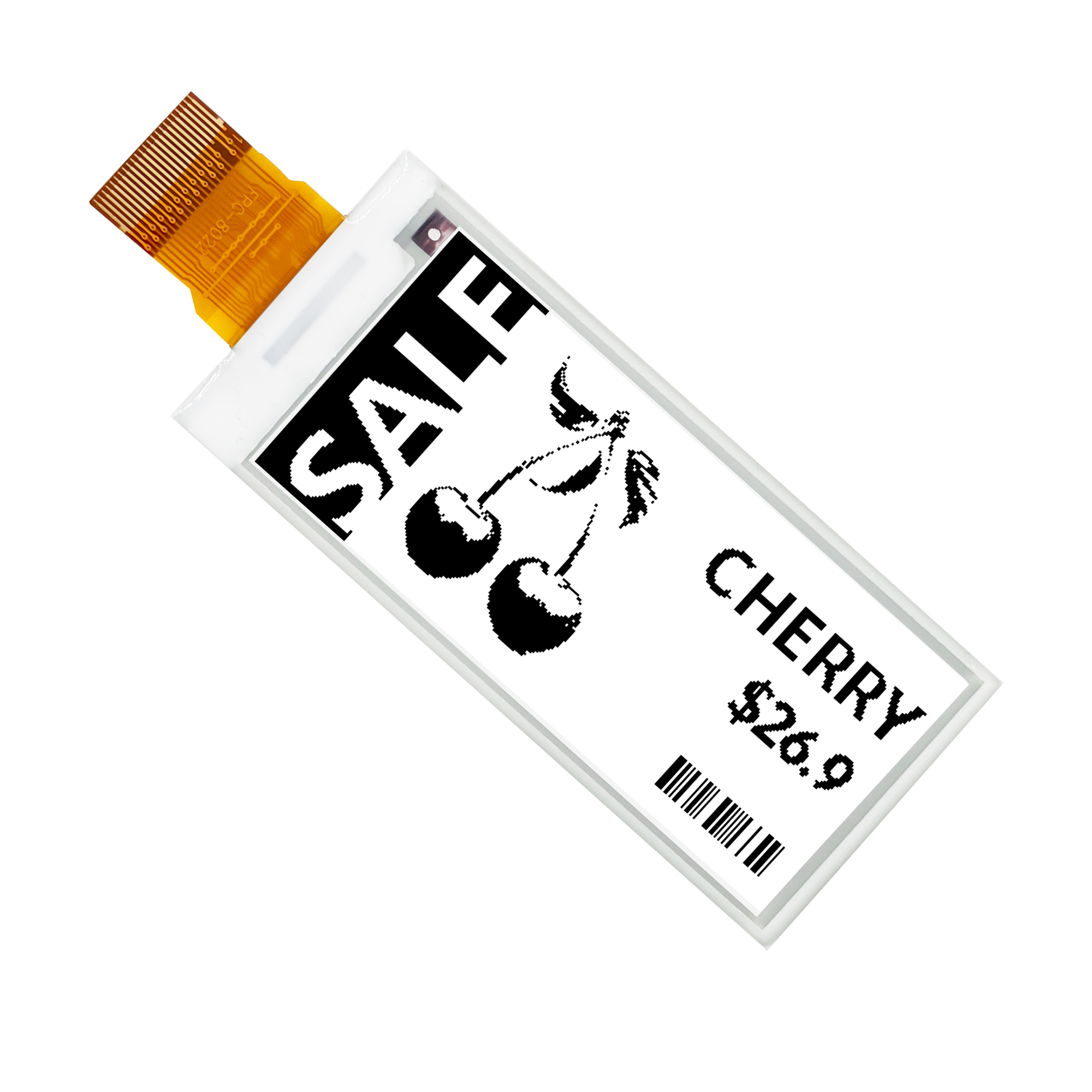

DKE 2.9 inch Black/White e Paper Display

Item No.: 00138
Resolution 128(H)x296(V),Active Area 29.60x66.90,Outline Dimension 36.7(H)×79.0 (V) ×1.10(D) ,IC is SSD1680,SPI interface.The epaper screen supports 2 grayscale, High contrast, can be seen under sunlight and continue display without power.
  • Color:
    Black/White
  • Size:
    2.9 inch
Description Specification
Description

ABOUT US
Zhejiang DKE Co.,LTD.,founded in 2005 in Liaoning Dalian,China,is a world-renowned new electronic paper display technology manufacturing service provider.After more than 10 years of sedimentation and development,we start from the production of LCD module to the development and manufacture of E-paper,and then to today's color E-paper research breakthrough development,DKE through the industrial transformation,strategic changing,main business adjustment,and several leapfrog growth stages eventually became an integrated enterprise with the collection of various types of E-paper display modules’design,development,production,and sales.

INTRODUCTION

DEPG0290BSS800F40 is an Active Matrix Electrophoretic Display (AMEPD), withinterface and a reference system design. The display is capable to display images at 1-bit white, black full display capabilities. The 2.9 inch active area contains 296×128 pixels. The moduleisaTFT-array driving electrophoresis display, with integrated circuits including gate driver, sourcedriver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Modulecanbeused in portable electronic devices, such as Electronic Shelf Label (ESL) System.

FEATURE

◆296×128 pixels display
◆High contrast High reflectance
◆Ultra wide viewing angle Ultra low power consumption
◆Pure reflective mode
◆Bi-stable display
◆Commercial temperature range
◆Landscape portrait modes
◆Hard-coat antiglare display surface
◆Ultra Low current deep sleep mode
◆On chip display RAM
◆Waveform can stored in On-chip OTP or written by MCU
◆Serial peripheral interface available
◆On-chip oscillator
◆On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
◆I²C signal master interface to read external temperature sensor
◆Built-in temperature sensor




APPLICATION



◆Internet of Things

◆Electronic shelf labels

◆Identification & Access

◆1D/2D barcode

◆Smart Tags

◆Reusable Transit Item

Specification

PARAMETERS



Part Number
DEPG0290BSS800F40
Type Dot Matrix
Size 2.9"
Resolution
128(H)×296(V)
Colour Black,White,Yellow
Operation Temp 0℃to +50℃
DPI
112
Active Area
29.06×66.90
Outline Dimension
36.7(H)×79.0 (V) ×1.20(D)
Typical operating current 3.0V
Typical peak current 2.2~3.7v
Weight
6.7±0.3
Pixel Pitch(mm)
0.227×0.226
Grey level 2Grey Level

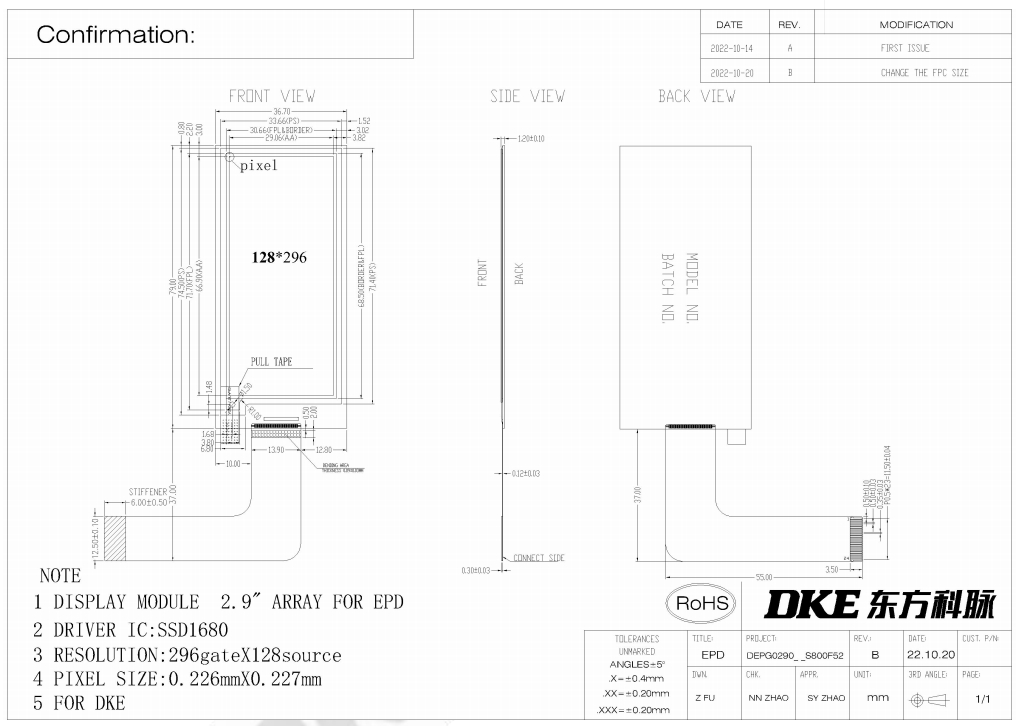

DRAWING
